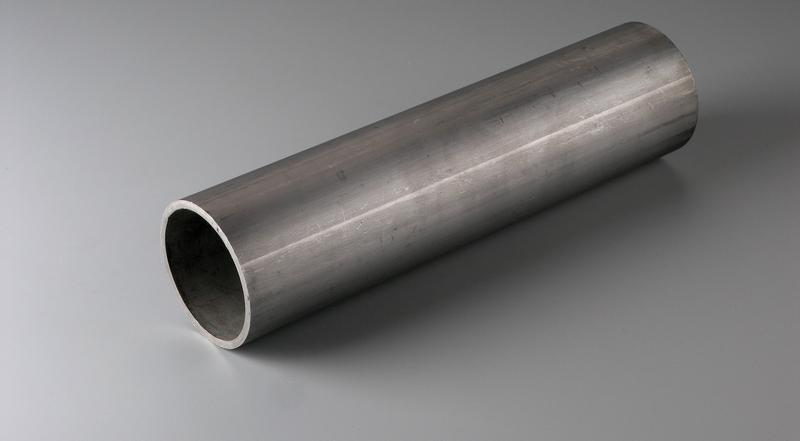

304 Stainless Steel Welded Round Tube
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
304 stainless steel welded round tubing is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. Available in A269 or A554.This product has a semi-smooth, dull grey finish with accurate dimensions throughout length. 304 stainless steel is a high strength material with excellent corrosion resistance making it ideal for liquid and/or chemicals passageways, railings, oil and gas lines, medical devices, and food processing. ASTM A269-10 is the standard specification for welded austenitic stainless steel tubing for general service. ASTM A554-21 is the standard specification for welded stainless steel mechanical tubing
For seamless 304 stainless steel round tubing please contact an Account Manager. Contact Us
Features
Alloy
Characteristics
Good welding & fair machining. Good corrosion resistance.
ASTM
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.08 max |
| Fe | 66.34 - 74 |
| Mn | 2 max |
| Ni | 8 - 10.5 |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
| Cr | 20 |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.289 lb/in3 | 8.0 g/cc |
| Ultimate Tensile Strength | 73,200psi | 310 MPa |
| Yield Tensile Strength | 31,200psi | 276 MPa |
| Melting Point | 2,550 - 2,651°F | 1,400 - 1,455°C |
| Temper | Annealed |
| Hardness Rockwell | B70 |
| Hardness Brinell | 123 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
||||

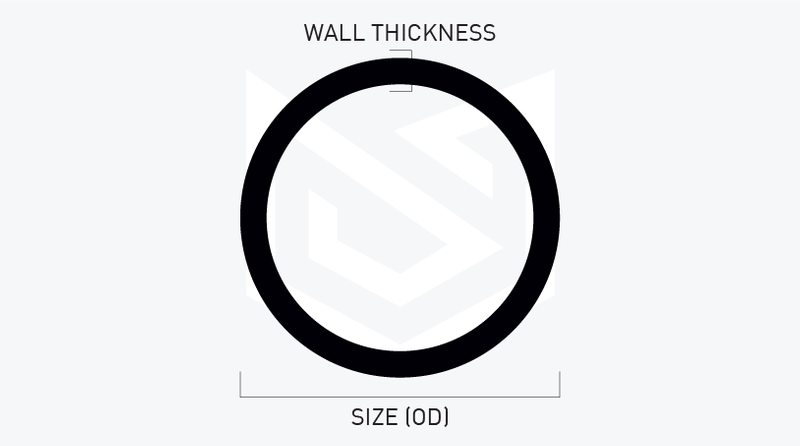

| Size | OD | Wall Thickness | Length | Weight (Lb/Ft) |
| 1/4" x 20ga | 1/4" | .035 (20ga)" | 240.00" | 0.081 |
| 1/4" x 16ga | 1/4" | .065 (16ga)" | 240.00" | 0.128 |
| 5/16" x 16ga | 5/16" | .065 (16ga)" | 240.00" | 0.173 |
| 3/8" x 20ga | 3/8" | .035 (20ga)" | 240.00" | 0.217 |
| 3/8" x 18ga | 3/8" | .049 (18ga)" | 240.00" | 0.172 |
| 3/8" x 16ga | 3/8" | .065 (16ga)" | 240.00" | 0.217 |
| 1/2" x 20ga | 1/2" | .035 (20ga)" | 240.00" | 0.176 |
| 1/2" x 18ga | 1/2" | .049 (18ga)" | 240.00" | 0.238 |
| 1/2" x 16ga | 1/2" | .065 (16ga)" | 240.00" | 0.305 |
| 5/8" x 16ga | 5/8" | .065 (16ga)" | 240.00" | 0.392 |
| 3/4" x 18ga | 3/4" | .049 (18ga)" | 240.00" | 0.370 |
| 3/4" x 16ga | 3/4" | .065 (16ga)" | 240.00" | 0.480 |
| 3/4" x 14ga | 3/4" | .083 (14ga)" | 240.00" | 0.591 |
| 3/4" x 11ga | 3/4" | .120 (11ga)" | 240.00" | 0.815 |
| 7/8" x 16ga | 7/8" | .065 (16ga)" | 240.00" | 0.568 |
| 7/8" x 11ga | 7/8" | .120 (11ga)" | 240.00" | 0.980 |
| 1" x 18ga | 1" | .049 (18ga)" | 240.00" | 0.502 |
| 1" x 16ga | 1" | .065 (16ga)" | 240.00" | 0.655 |
| 1" x 11ga | 1" | .120 (11ga)" | 240.00" | 1.138 |
| 1-1/4" x 16ga | 1-1/4" | .065 (16ga)" | 240.00" | 0.830 |
SEE ALL AVAILABLE SIZES |
||||
