304 Stainless Steel Rectangular Tube

Item Selection
1) Select Size:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

304 stainless steel rectangular tubing is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This material has a textured dull grey finish with accurate dimensions throughout length. 304 stainless steel is a high strength material with excellent corrosion resistance making it a great candidate for automotive fabrication, structural support, and sculptures. ASTM A554 is the standard specification for welded stainless steel mechanical tubing.

Please visit our Gauge Conversion Chart for helpful information.



Features

Alloy

304

ASTM

ASTM A554

Characteristics

304
Good welding & fair machining. Good corrosion resistance.

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.08 max
Fe 66.34 - 74
Mn 2 max
Ni 8 - 10.5
P 0.045 max
S 0.03 max
Si 1 max
Cr 20



MECHANICAL INFORMATION

  Imperial Metric
Density 0.289 lb/in3 8.0 g/cc
Ultimate Tensile Strength 73,200psi 310 MPa
Yield Tensile Strength 31,200psi 276 MPa
Melting Point 2,550 - 2,651°F 1,400 - 1,455°C



Temper Annealed
Hardness Rockwell B70
Hardness Brinell 123
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

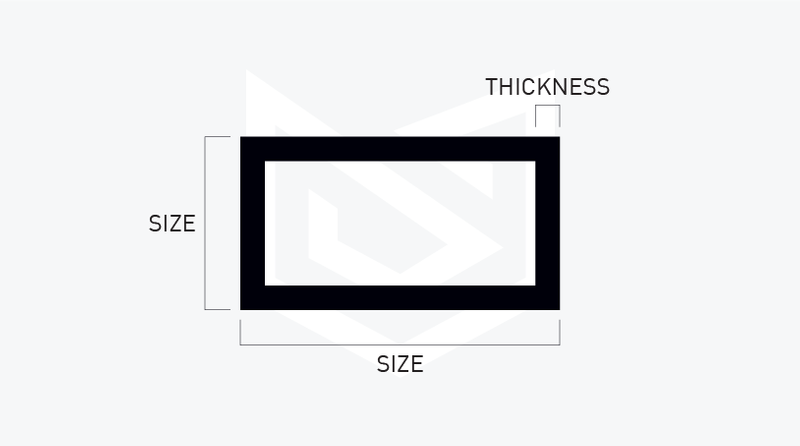

Size OD Wall Thickness Length Weight
(Lb/Ft)
1-1/2" x 1 x 11ga 1-1/2 x 1" 11ga 240.00" 1.929
2" x 1" x 11ga 2 x 1 " 11ga 240.00" 2.250
2" x 1" x 16ga 2 x 1 " 16ga 240.00" 1.269
3" x 1" x 11ga 3 x 1" 11ga 240.00" 3.080
3" x 1-1/2" x 11ga 3 x 1-1/2 " 11ga 240.00" 3.477
3" x 2" x 11ga 3 x 2 " 11ga 240.00" 3.884
3" x 2" x 3/16" 3 x 2 " 3/16" 240.00" 5.600
4" x 2" x 11ga 4 x 2 " 11ga 240.00" 4.700
4" x 2" x 1/4" 4 x 2" 1/4" 240.00" 8.810
4" x 2" x 3/16" 4 x 2" 3/16" 240.00" 6.900
4" x 3" x 3/16" 4 x 3" 3/16" 240.00" 8.127
6" x 2" x 11ga 6 x 2" 11ga 240.00" 6.260
6" x 2" x 3/16" 6 x 2" 3/16" 240.00" 9.270
6" x 3" x 3/16" 6 x 3" 3/16" 240.00" 10.520
6" x 4" x 1/4" 6 x 4" 1/4" 240.00" 16.350
