304 Stainless Steel Angle
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
304 Stainless steel equal leg angle is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This product has a semi-smooth, dull grey finish and tapered edges. 304 stainless steel is a high strength material with excellent corrosion resistance making it ideal for shelves, brackets, bracing, and other architectural uses. ASTM A276-10 is the standard specification for structural stainless steel.
Features
Alloy
304
ASTM
ASTM A276-10
Characteristics
304
Good welding & fair machining. Good corrosion resistance.
Good welding & fair machining. Good corrosion resistance.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.08 max |
| Fe | 66.34 - 74 |
| Mn | 2 max |
| Ni | 8 - 10.5 |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
| Cr | 20 |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.289 lb/in3 | 8.0 g/cc |
| Ultimate Tensile Strength | 73,200psi | 310 MPa |
| Yield Tensile Strength | 31,200psi | 276 MPa |
| Melting Point | 2,550 - 2,651°F | 1,400 - 1,455°C |
| Temper | Annealed |
| Hardness Rockwell | B70 |
| Hardness Brinell | 123 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|

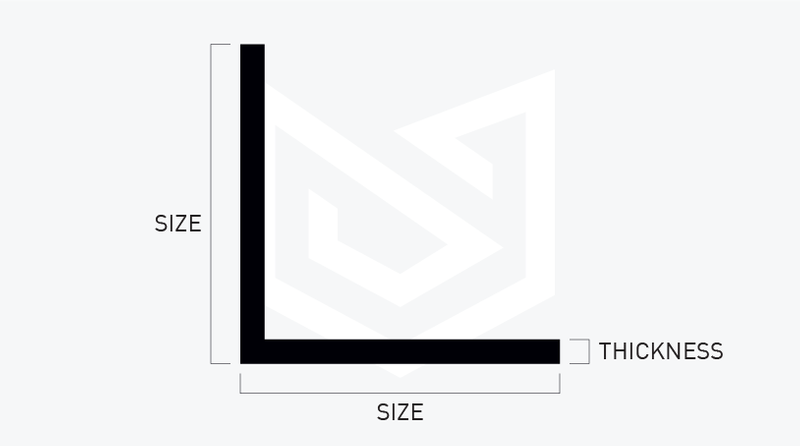

Available Sizes
AVAILABLE SIZES |
|||
| Size | Thickness | Length | Weight (lbs/ft) |
| 3/4" x 3/4" x 1/8" | 1/8" | 240.00" | 0.590 |
| 1" x 1" x 1/8" | 1/8" | 240.00" | 0.800 |
| 1" x 1" x 3/16" | 3/16" | 240.00" | 1.160 |
| 1" x 1" x 1/4" | 1/4" | 240.00" | 1.490 |
| 1-1/4" x 1-1/4" x 1/8" | 1/8" | 240.00" | 1.010 |
| 1-1/4" x 1-1/4" x 3/16" | 3/16" | 240.00" | 1.479 |
| 1-1/4" x 1-1/4" x 1/4" | 1/4" | 240.00" | 1.920 |
| 1-1/2" x 1-1/2" x 1/8" | 1/8" | 240.00" | 1.230 |
| 1-1/2" x 1-1/2" x 3/16" | 3/16" | 240.00" | 1.800 |
| 1-1/2" x 1-1/2" x 1/4" | 1/4" | 240.00" | 2.340 |
| 2" x 2" x 1/8" | 1/8" | 240.00" | 1.650 |
| 2" x 2" x 3/16" | 3/16" | 240.00" | 2.439 |
| 2" x 2" x 1/4" | 1/4" | 240.00" | 3.189 |
| 2-1/2" x 2-1/2" x 3/16" | 3/16" | 240.00" | 3.069 |
| 2-1/2" x 2-1/2" x 1/4" | 1/4" | 240.00" | 4.100 |
| 3" x 2" x 1/4" | 1/4" | 240.00" | 4.100 |
| 3" x 3" x 3/16" | 3/16" | 240.00" | 3.069 |
| 3" x 3" x 1/4" | 1/4" | 240.00" | 4.899 |
| 3" x 3" x 3/8" | 3/8" | 240.00" | 7.200 |
| 4" x 4" x 1/4" | 1/4" | 240.00" | 6.600 |
| 4" x 4" x 3/8" | 3/8" | 240.00" | 9.800 |
