6061-T6 Aluminum Floor Plate
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description

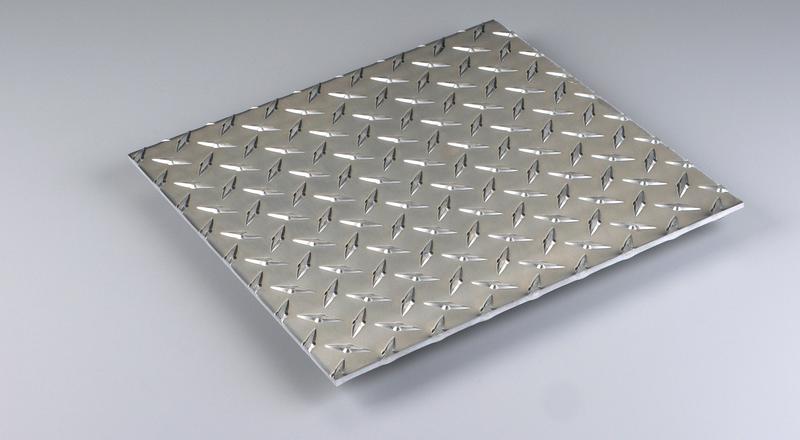

6061 Aluminum floor plate, commonly known as “diamond plate” or “tread plate”, is an excellent candidate for most processing techniques and both interior and exterior applications. It’s lightweight with a dull mill textured finish. Raised diamond pattern on the surface provides excellent traction. Common applications include truck beds, support structures, catwalks, and trench covers. 6061 T6 aluminum floor plate has the highest corrosion resistance of all heat treated aluminum.
Features
ASTM
ASTM B632
Alloy
6061-T6
Characteristics
6061
Most commonly used. High strength & good welding. Not good formability - If formed, needs a very gradual radius. Good machinability
Most commonly used. High strength & good welding. Not good formability - If formed, needs a very gradual radius. Good machinability
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| Al | 98 |
| Cr | 0.04 - 0.35 |
| Cu | 0.15 - 0.40 |
| Fe | 0.7 max |
| Mg | 0.8 - 1.2 |
| Mn | 0.15 max |
| Si | 0.4 - 0.8 |
| Ti | 0.15 max |
| Zn | 0.25 max |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.1 lb/in3 | 2.7 g/cc |
| Ultimate Tensile Strength | 45,000psi | 310 MPa |
| Yield Tensile Strength | 40,000psi | 276 MPa |
| Fatigue Strength | 14,000psi | 96.5 MPa |
| Shear Strength | 30,000psi | 207 MPa |
| Melting Point | 1,080 - 1,205°F | 582 - 652°C |
| Hardness Rockwell | B60 |
| Hardness Brinell | 95 |
|
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. |
|
Available Sizes
AVAILABLE SIZES |
|||
| Thickness | Width | Length | Weight (lbs/ft) |
| 1/8" | 48.00" | 192.00" | 1.899 |
| 3/16" | 48.00" | 192.00" | 2.799 |
| 1/4" | 48.00" | 192.00" | 3.699 |
| 1/4" | 60.00" | 192.00" | 3.699 |
| 3/8" | 48.00" | 144.00" | 5.400 |
| 3/8" | 48.00" | 192.00" | 5.400 |
| 3/8" | 60.00" | 192.00" | 5.400 |
| 1/2" | 60.00" | 192.00" | 7.299 |
