5086-H32 Aluminum Floor Plate

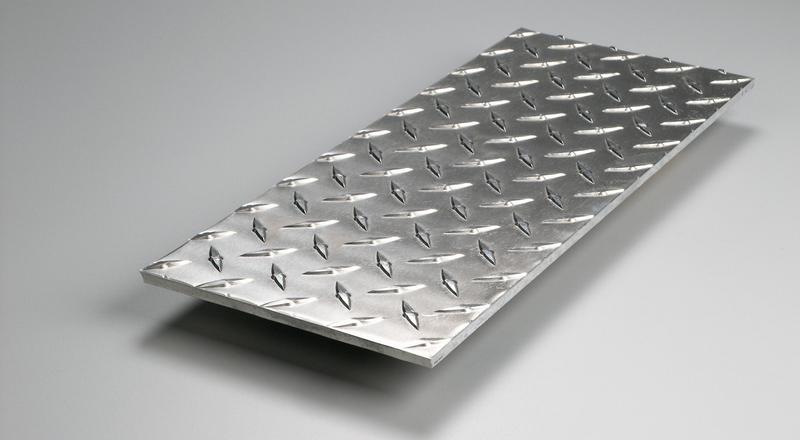

Aluminum diamond floor plate stock cut to size
Click to Enlarge
This is description text
Item Selection
1) Select Thickness:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

5086-H32 Aluminum floor plate is an excellent candidate for most processing techniques and both interior and exterior applications. 5086 has a higher strength tolerance than 5052 or 5083, and is considered a “marine grade” tread plate. Common applications include marine applications, support structures, catwalks, and trench covers. With above average corrosion resistance, this an excellent choice wherever strength is required.

Features

Alloy

5086-H32

ASTM

ASTM B632

Characteristics

5086
Good corrosion resistance & fair formability.

Specifications

CHEMICAL COMPOSITION
Element Percentage
Al 95.4
Cr 0.05 - 0.25
Cu 0.1 max
Mg 3.5 - 4.5
Fe  0.5 max
Mn 0.2 - 0.7
Si 0.4 max
Zn 0.25 max



MECHANICAL INFORMATION
  Imperial Metric
Density 0.0961 lb/in3 2.66 g/cc
Ultimate Tensile Strength 42,000psi 290 MPa
Yield Tensile Strength 30,000psi 207 MPa
Fatigue Strength 21,800psi 150 MPa
Shear Strength 35,400psi 175 MPa
Melting Point 1,085 - 1,185°F 585 - 640°C



Temper H32
Hardness Knoop 101
Hardness Brinell 78
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES
Thickness Width Length Weight
(lbs/ft)
3/16" 48.00" 144.00" 2.799
3/16" 48.00" 192.00" 2.800
