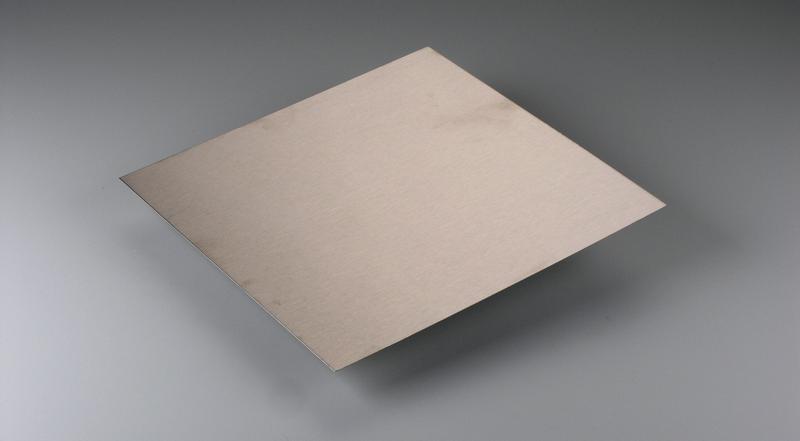

304-#4 (Brushed) Stainless Steel Sheet
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
304 #4 stainless steel sheet is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This non-magnetic product features a #4 brushed finish with directional grain and comes with a removable PVC protective film on one side making it ideal for cosmetic applications such as backsplashes. 304 #4 stainless steel is a high strength material with excellent corrosion resistance, so it is also commonly used in aerospace structures, pressure vessels, architectural designs, and food and beverage industrial equipment. ASTM A240 is the standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications.
Please visit our Gauge Conversion Chart for helpful information.
Features
Alloy
ASTM
Characteristics
Good welding & fair machining. Good corrosion resistance.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.08 max |
| Fe | 66.34 - 74 |
| Mn | 2 max |
| Ni | 8 - 10.5 |
| P | 0.045 max |
| S | 0.03 max |
| Si | 1 max |
| Cr | 20 |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.289 lb/in3 | 8.0 g/cc |
| Ultimate Tensile Strength | 73,200psi | 310 MPa |
| Yield Tensile Strength | 31,200psi | 276 MPa |
| Melting Point | 2,550 - 2,651°F | 1,400 - 1,455°C |
| Temper | Annealed |
| Hardness Rockwell | B70 |
| Hardness Brinell | 123 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
|||
| Thickness | Width | Length | Weight (lbs/ft) |
| 24ga | 48.00" | 120.00" | 1.010 |
| 22ga | 48.00" | 120.00" | 1.260 |
| 20ga | 48.00" | 120.00" | 1.512 |
| 20ga | 60.00" | 120.00" | 1.512 |
| 18ga | 48.00" | 120.00" | 2.016 |
| 16ga | 48.00" | 120.00" | 2.520 |
| 14ga | 48.00" | 120.00" | 3.530 |
| 12ga | 48.00" | 120.00" | 4.411 |
| 11ga | 48.00" | 120.00" | 5.040 |
| 10ga | 48.00" | 120.00" | 5.670 |
