Norseman Drill Bits Jobber Length Magnum Super Premium - Metric
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
Pricing is subject to change. In-store pricing may vary from online pricing.
Product Overview

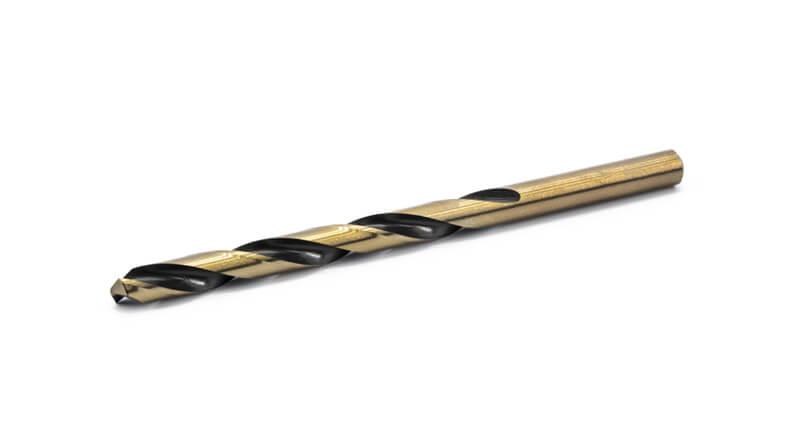

Norseman Jobber Length Drill Bits
Wire Size
Ideal For: Metals, Plastic, Wood
- Nitro-carburized flute for substantially longer cutting life
- Special hi-molybdenum tool steel material with a gold oxide finish
- NAS 907B heavy duty 135º split point
- Ability to drill through material over 30 on the Rockwell "C" scale
- Designed to run cooler, stop drill walking, and hold tighter hole sizes
Please visit our Drill Bit Conversion Chart for helpful information.
Specifications
DETAILS |
||||
| Diameter (mm) | Overall Length (mm) | Overall Length (inches) | Flute Length (mm) | Flute Length (inches) |
| 1 | 41mm | 1-5/8" | 17mm | 11/16" |
| 1.5 | 48mm | 1-7/8" | 22mm | 7/8" |
| 2 | 51mm | 2" | 25mm | 1" |
| 2.5 | 60mm | 2-23/64" | 35mm | 1-3/8" |
| 3 | 70mm | 2-3/4" | 41mm | 1-5/8" |
| 3.5 | 73mm | 2-7/8" | 45mm | 1-3/4" |
| 4 | 83mm | 3-1/4" | 54mm | 2-1/8" |
| 4.5 | 86mm | 3-3/8" | 56mm | 2-13/64" |
| 5 | 92mm | 3-5/8" | 62mm | 2-7/16" |
| 5.5 | 95mm | 3-3/4" | 64mm | 2-1/2" |
| 6 | 102mm | 4" | 70mm | 2-3/4" |
| 6.5 | 105mm | 4-1/8" | 73mm | 2-7/8" |
| 7 | 105mm | 4-1/8" | 73mm | 2-7/8" |
| 7.5 | 111mm | 4-3/8" | 78mm | 3" |
| 8 | 114mm | 4-1/2" | 81mm | 3-3/16" |
| 8.5 | 121mm | 4-3/4" | 87mm | 3-27/64" |
| 9 | 124mm | 4-7/8" | 89mm | 3-1/2" |
| 9.5 | 127mm | 5" | 92mm | 3-5/8" |
| 10 | 130mm | 5-1/8" | 95mm | 3-3/4" |
| 10.5 | 133mm | 5-16/64" | 98mm | 3-7/8" |
| 11 | 140mm | 5-1/2" | 103mm | 4-1/16" |
| 11.5 | 143mm | 5-5/8" | 106mm | 4-7/32" |
| 12 | 149mm | 5-7/8" | 111mm | 4-3/8" |
| 12.5 | 152mm | 6" | 114mm | 4-1/2" |
| 13 | 152mm | 6" | 114mm | 4-1/2" |
