Hot Rolled Steel Tee Bar

Item Selection
1) Select Size:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

A36 hot rolled steel tee bars, or tee rail, is an excellent candidate for most processing techniques. A36 hot rolled steel tee bars have a rough, blue-grey finish with tapered legs. A36 material is a low carbon steel, often referred to as mild steel which is long lasting and durable. Common applications include brackets, lintels and ornamental projects. ASTM A36 / A36M-08 is the standard specification for carbon structural steel.

Features

ASTM

ASTM A36

Characteristics

A36
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.

Alloy

A36

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.26
Cu 0.2
Fe 99
Mn 0.75
P 0.04 max
S 0.05 max



MECHANICAL INFORMATION

  Imperial Metric
Density 0.282 lb/in3 7.8 g/cc
Ultimate Tensile Strength 58,000psi 400 MPa
Yield Tensile Strength 47,700psi 315 MPa
Shear Strength 43,500psi 300 MPa
Melting Point 2,590 - 2,670°F 1,420 - 1,460°C



Hardness Brinell 140
Production Method Hot Rolled
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

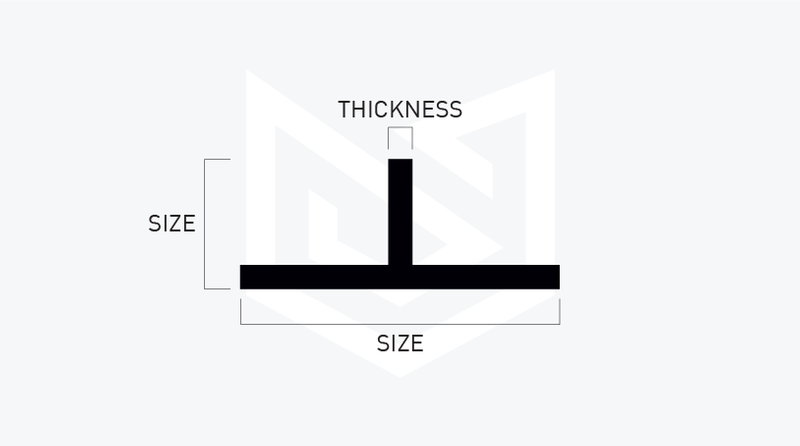

Size Depth Width (Flange) Thickness (Web) Weight Per Foot (Lbs)
1" x 1" x 1/8" 1" 1" .125" 0.85
1-1/2" x 1-1/2" x 3/16" 1.5" 1.5" .1875" 1.8
2" x 2" x 1/4" 2" 2" .25" 3.62
