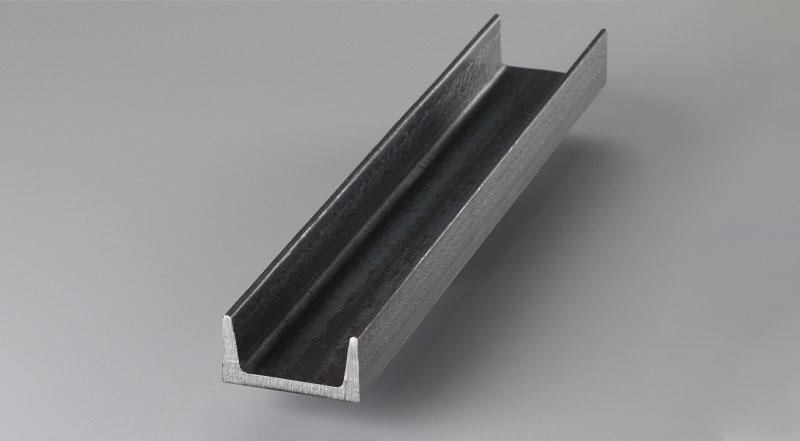

Hot Rolled Steel Bar Channel
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
A36 hot rolled steel bar channels are an excellent candidate for most processing techniques. A36 hot rolled steel channels have a rough, blue-grey finish. A36 material is a low carbon steel, often referred to as mild steel which is long lasting and durable. These channels are classified as “bar size” due to their greatest dimension (excluding length) being less than 3 inches, they’re lightweight and designed for smaller projects. Common applications include structural support, trailers, railing, fencing and other architectural uses. ASTM A36 / A36M-08 is the standard specification for carbon structural steel.
Features
ASTM
ASTM A36
Characteristics
A36
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.
Alloy
A36
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.26 |
| Cu | 0.2 |
| Fe | 99 |
| Mn | 0.75 |
| P | 0.04 max |
| S | 0.05 max |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.282 lb/in3 | 7.8 g/cc |
| Ultimate Tensile Strength | 58,000psi | 400 MPa |
| Yield Tensile Strength | 47,700psi | 315 MPa |
| Shear Strength | 43,500psi | 300 MPa |
| Melting Point | 2,590 - 2,670°F | 1,420 - 1,460°C |
| Hardness Brinell | 140 |
| Production Method | Hot Rolled |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
|||||

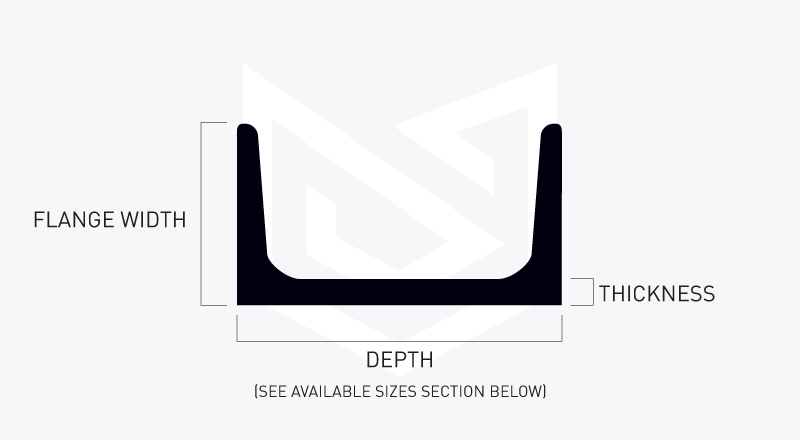

| Size | Depth | Width | Thickness | Length | Weight (lbs/ft) |
| 3/4" x 3/8" x 1/8" | 0.75" | 0.375" | 1/8" | 240.00" | 0.560 |
| 1" x 1/2" x 1/8" | 1" | 0.5" | 1/8" | 240.00" | 0.840 |
| 1-1/4" x 1/2" x 1/8" | 1.25" | 0.5" | 1/8" | 240.00" | 0.990 |
| 1-1/2" x 1/2" x 1/8" | 1.5" | 0.5" | 1/8" | 240.00" | 1.119 |
| 1-1/2" x 9/16" x 3/16" | 1.5" | 0.563" | 3/16" | 240.00" | 1.440 |
| 1-1/2" x 3/4" x 1/8" | 1.5" | 0.75" | 1/8" | 240.00" | 1.170 |
| 2" x 1/2" x 1/8" | 2" | 0.5" | 1/8" | 240.00" | 1.430 |
| 2" x 9/16" x 3/16" | 2" | 0.563" | 3/16" | 240.00" | 1.860 |
| 2" x 5/8" x 1/4" | 2" | 0.625" | 1/4" | 240.00" | 2.280 |
| 2" x 1" x 1/8" | 2" | 1" | 1/8" | 240.00" | 1.590 |
| 2" x 1" x 3/16" | 2" | 1" | 3/16" | 240.00" | 2.319 |
| 2-1/2" x 5/8" x 3/16" | 2.5" | 0.625" | 3/16" | 240.00" | 2.270 |
