Evolution S355MCS - 14in Mitering Chop Saw
Product Overview

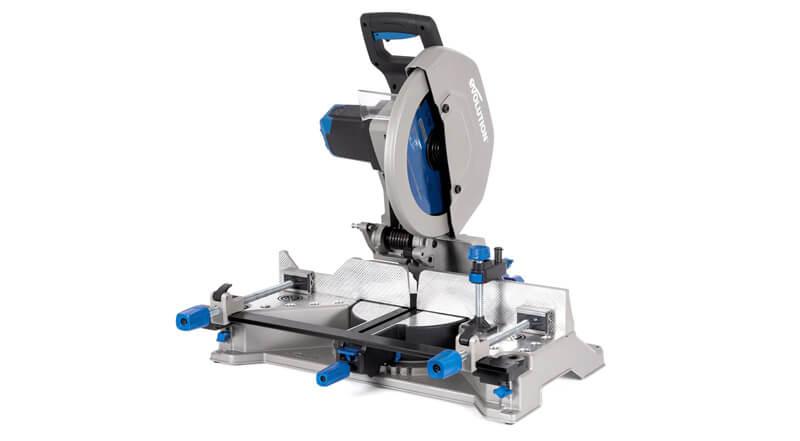

Evolution 14" Mitering Chop Saw
S355 MCS
Ideal For: General Purpose Metals, Wood and Masonry
- Mitering base and blade
- Quick release vice with 0° - 45° miter capacity
- 3 position cutting head for increased cutting capacity and optimised cuts

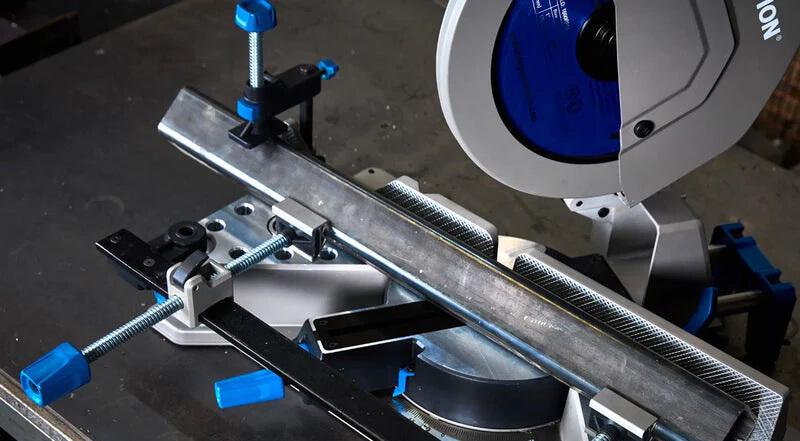

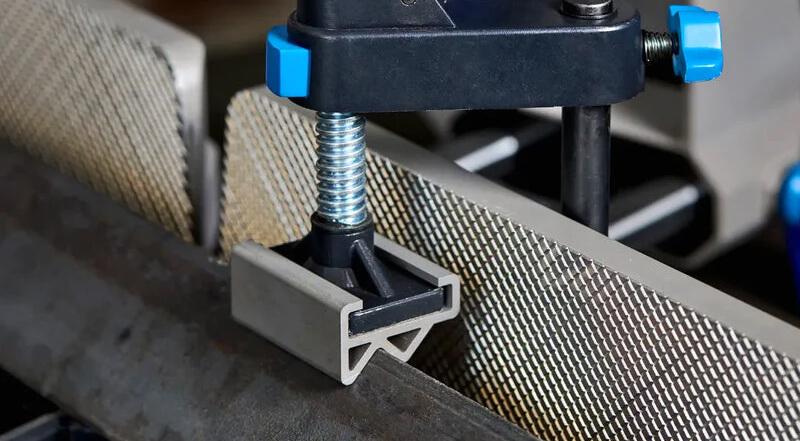

- Dual removable v-blocks and multi-position top clamp lock in for easy workpiece clamping
- Knurled clamp faces improves grip and secures clamping for smoother cuts

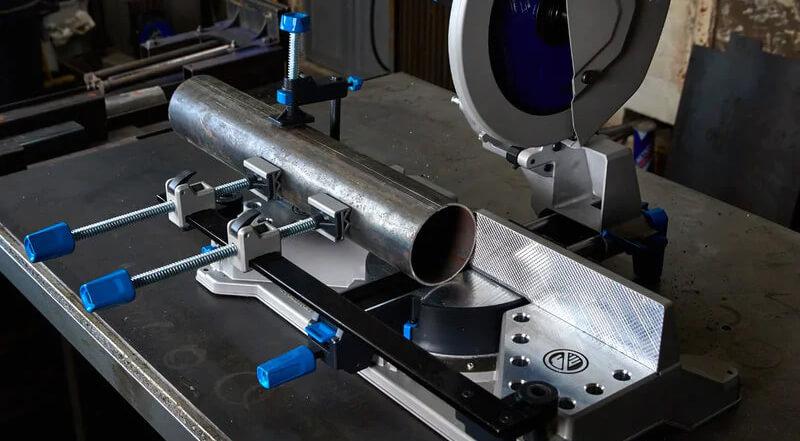

- Optimized round tube clamping
- Height adjustable clamp rail
- Ambidextrous trigger
- Micro-adjustable setup for precisely angled cuts

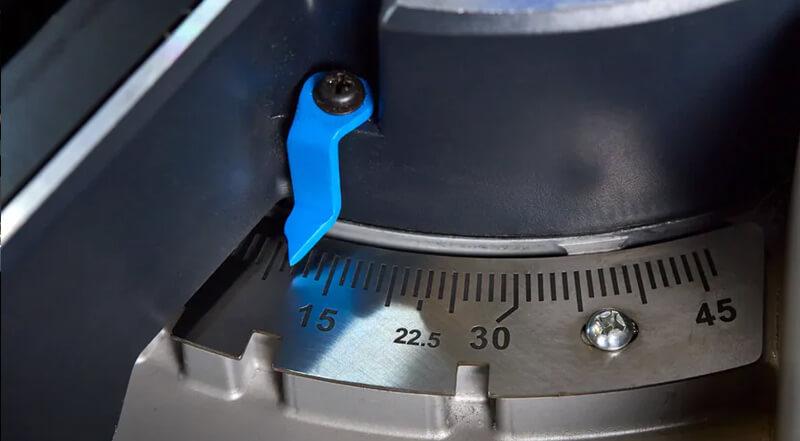

- Clear and accurate stainless miter gauge
- Easy blade change
- Integrated tool storage
Items Included:
Instruction Manual
66 Tooth Mild Steel TCT Blade
Double Ended 5mm/8mm Hex Key
Cutting Head Assembly
Base Table Assembly
Rear Stabilising Leg
QR Top Clamp
Rail Bracket & FIxings
3 - V-Blocks
2 - QR Front Clamps
Specifications
DETAILS |
|
Brand Name |
Evolution |
Model |
S355 MCS |
Blade Capacity |
14" |
Blade Supplied |
14" Mild Steel |
Blade Arbor |
1" |
Voltage |
120V / 60Hz |
Power |
15A |
No Load Speed |
1450 |
Weight |
77 lbs |
Power Cord |
10 ft Rubber |
Minimum Cut Off |
5/16" |
Mild Steel Plate (Max Thickness) |
1/2" |
Stainless Steel Plate (Max Thickness) |
13/64" |
Square Tube at 90º (Mild Steel) |
4-3/4" x 4-3/4" |
Square Tube at 45° ML |
4" x 4" |
Square Tube at 45" MR |
1-3/4" x 1-3/4" |
Rectangular Tube at 90° |
6-12" x 4" |
Rectangular Tube at 45° |
4-1/2" x 1-3/4" |
Round Tube at 90° |
Ø 4-3/4" |
Round Tube at 45° (Mild Steel) |
Ø 4" |
