Aluminum Rail Cap

Click to Enlarge
This is description text
Item Selection
1) Select Size:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
Disclaimer:

While Supplies Last!

This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

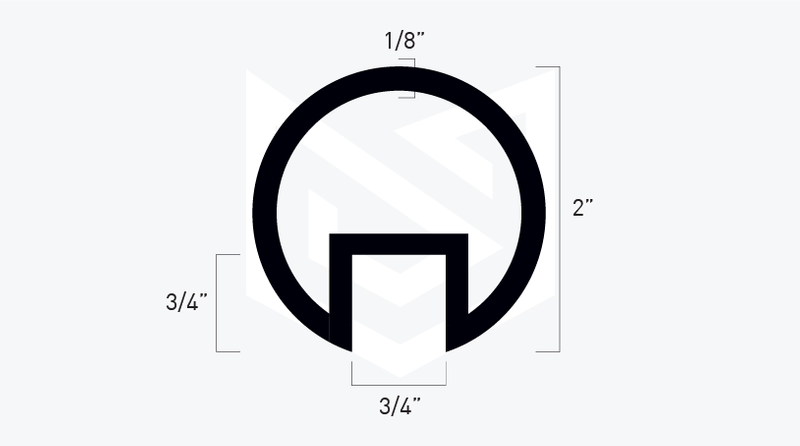

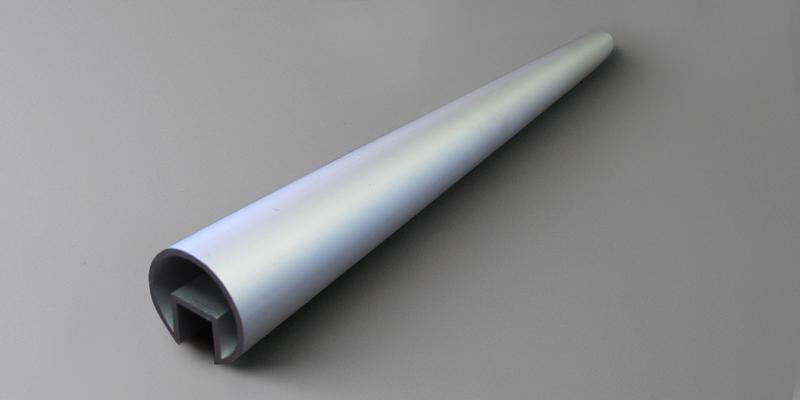

6061-T6 Aluminum rail caps are extruded for seamless precision sizing throughout the full lengthof the material. The 3/4" x 3/4" square concaved base allows the round rail caps to be installed on square tubing or bar stock providing a sturdy support. Made from a lightweight material with a smooth surface, it is heat treatable, non-magnetic, and resistant to stress cracking. These aluminum rail caps are an excellent candiate for both interrior and exterrior stair and safety railling applications.

Features

Alloy

6061-T6

ASTM

ASTM B221-08

Characteristics

6061
Most commonly used. High strength & good welding. Not good formability - If formed, needs a very gradual radius. Good machinability

Specifications

CHEMICAL COMPOSITION
Element Percentage
Al 98
Cr 0.04 - 0.35
Cu 0.15 - 0.40
Fe  0.7 max
Mg 0.8 - 1.2
Mn 0.15 max
Si 0.4 - 0.8
Ti 0.15 max
Zn 0.25 max



MECHANICAL INFORMATION
  Imperial Metric
Density 0.1 lb/in3 2.7 g/cc
Ultimate Tensile Strength 45,000psi 310 MPa
Yield Tensile Strength 40,000psi 276 MPa
Fatigue Strength 14,000psi 96.5 MPa
Shear Strength 30,000psi 207 MPa
Melting Point 1,080 - 1,205°F 582 - 652°C



Hardness Rockwell B60
Hardness Brinell 95

The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
