6063-T52 Aluminum Radius Corner Square Tube
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
6063-T52 Aluminum radius corner square tubing is an excellent candidate for most processing techniques with good corrosion resistance and rounded edges inside and outside. It’s a lightweight material with a semi-smooth surface and a dull mill finish. This is an extruded tube meaning there is no seam. It’s great for structural projects that require light weight material including frames, trailers, furniture components, awnings, and ornamental purposes.
Features
ASTM
ASTM B221-08
Alloy
6063-T52
Characteristics
6063
Medium strength. Weldable, machinable & formable with large radius.
Medium strength. Weldable, machinable & formable with large radius.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| Al | 98.9 |
| Cr | 0.1 max |
| Cu | 0.1 max |
| Mg | 0.45 - 0.9 |
| Fe | 0.35 max |
| Mn | 0.1 max |
| Si | 0.2 - 0.6 |
| Zn | 0.1 max |
| Ti | 0.1 max |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.1 lb/in3 | 2.7 g/cc |
| Ultimate Tensile Strength | 27,000psi | 186 MPa |
| Yield Tensile Strength | 21,000psi | 145 MPa |
| Fatigue Strength | 10,000psi | 68.9 MPa |
| Shear Strength | 17,000psi | 117 MPa |
| Melting Point | 1,140 - 1,210°F | 616 - 654°C |
| Temper | T52 |
| Hardness Knoop | 83 |
| Hardness Brinell | 60 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
||||

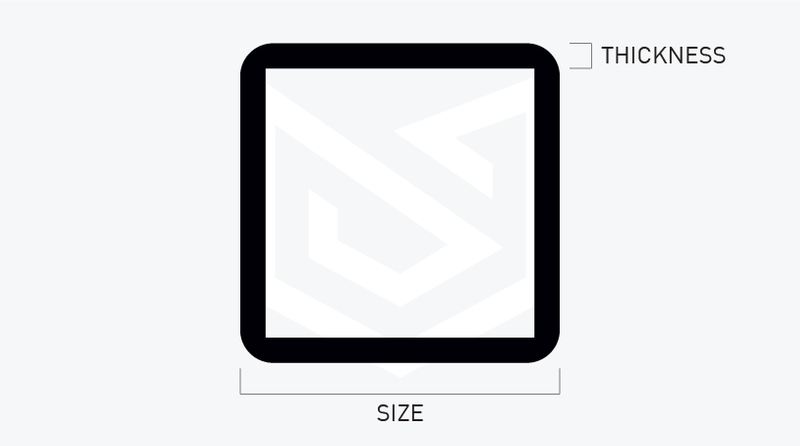

| Size | OD | Wall Thickness | Length | Weight (Lb/Ft) |
| 1"x1"x.062" | 1x1" | .062" | 288.00" | 0.271 |
| 1"x1"x.090" | 1x1" | .090" | 288.00" | 0.375 |
| 1"x1"x1/8" | 1x1" | 1/8" | 288.00" | 0.524 |
| 6" x 6" x 1/8" | 6 x 6" | 1/8" | 253.00" | 3.420 |
