360 Brass Square Bar
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description

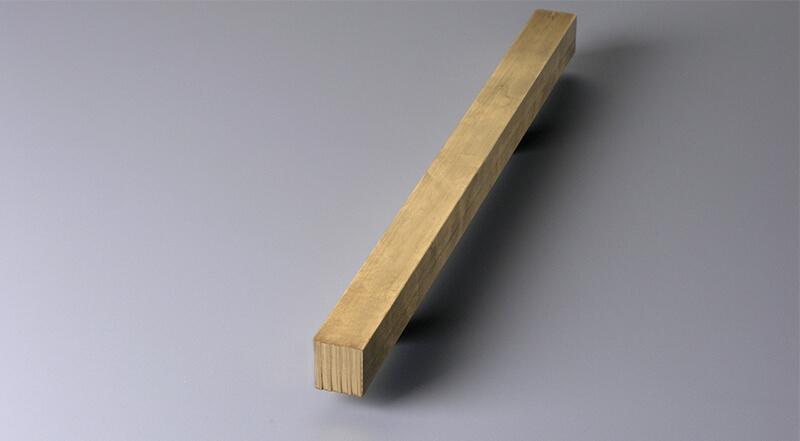

360 Brass square bar, or key stock, is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. When brass is exposed to natural elements, it will patina and develop a greenish or bluish hue over time. This product has great corrosion resistance, conducts electricity, and has a semi-smooth surface with a yellow-brass color and defined edges. Brass square bars are commonly used in corrosive environments, mechanical or architectural applications, gears or lock components, and ornamental projects. ASTM B16 360 brass square bar is a standard specification for free-cutting brass rod, bar, and other shapes.
Features
Alloy
360
ASTM
ASTM B16
Characteristics
360
Superior machinability. Can be cut & shaped to preference. Fair forming. Can be welded or soldered.
Superior machinability. Can be cut & shaped to preference. Fair forming. Can be welded or soldered.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| Cu | 61.5 |
| Pb | 3.00 |
| Zn | 35.5 |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.307 lb/in3 | 8.50 g/cc |
| Ultimate Tensile Strength | 49,000 - 68,000psi | 338 - 469 MPa |
| Yield Tensile Strength | 18,000 - 45,000psi | 124 - 310 MPa |
| Shear Strength | 30,500 - 45,000psi | 210 - 310 MPa |
| Melting Point | 1,630 - 1,650°F | 855 - 900°C |
| Temper | H02 |
| Hardness Rockwell | B78 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
||
| Size | Length | Weight (lbs/ft) |
| 1/4" | 144.00" | 0.230 |
| 3/8" | 144.00" | 0.518 |
| 1/2" | 144.00" | 0.921 |
| 5/8" | 144.00" | 1.439 |
| 3/4" | 144.00" | 2.072 |
| 1" | 144.00" | 3.684 |
| 1-1/4" | 144.00" | 5.756 |
| 1-1/2" | 144.00" | 8.289 |
| 1-3/4" | 144.00" | 11.280 |
| 2" | 144.00" | 14.740 |
