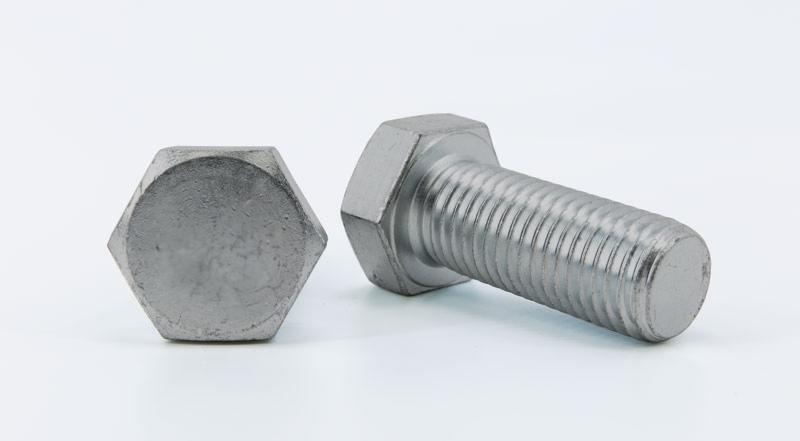

304 Stainless Steel Hex Cap Screws
Click to Enlarge
This is description text
.jpg){kind=link}
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
18-8 Stainless steel hex cap screw passivated ASME B18.2.1 ASTM F593-(CW). The length of the screw is measured from under the head. Good for chemcial resistant applications and may be mildly magnetic. Please review our "Available Sizes" section for fully threaded versus partially threaded (shoulder/shank) threading details.
Please contact our Customer Service Department for material test reports.
Contact Us
Available Sizes
AVAILABLE SIZES |
|||
| Size & TPI | Length | Fully Threaded | Partially Threaded (Shoulder/Shank) |
| 1/4" - 20 | 1/2" | x | |
| 1/4" - 20 | 3/4" | x | |
| 1/4" - 20 | 1" | x | |
| 1/4" - 20 | 1-1/4" | x | |
| 1/4" - 20 | 1-1/2" | x | |
| 1/4" - 20 | 2" | x | |
| 1/4" - 20 | 2-1/2"" | x | |
| 1/4" - 20 | 3" | x | |
| 1/4" - 20 | 3-1/2" | x | |
| 1/4" - 20 | 4" | x | |
| 1/4" - 20 | 5" | x | |
| 1/4" - 20 | 6" | x | |
| 5/16" - 18 | 3/4" | x | |
| 5/16" - 18 | 1" | x | |
| 5/16" - 18 | 1-1/2" | x | |
| 5/16" - 18 | 2" | x | |
| 5/16" - 18 | 2-1/2" | x | |
| 5/16" - 18 | 3" | x | |
| 5/16" - 18 | 3-1/2" | x | |
| 5/16" - 18 | 4" | x | |
| 5/16" - 18 | 5" | x | |
| 3/8" - 16 | 3/4" | x | |
| 3/8" - 16 | 1" | x | |
| 3/8" - 16 | 1-1/4" | x | |
| 3/8" - 16 | 1-1/2" | x | |
| 3/8" - 16 | 2" | x | |
| 3/8" - 16 | 2-1/2" | x | |
| 3/8" - 16 | 3" | x | |
| 3/8" - 16 | 3-1/2" | x | |
| 3/8" - 16 | 4" | x | |
| 3/8" - 16 | 5" | x | |
| 3/8" - 16 | 6" | x | |
| 1/2" - 13 | 1" | x | |
| 1/2" - 13 | 1-1/4" | x | |
| 1/2" - 13 | 1-1/2" | x | |
| 1/2" - 13 | 2" | x | |
| 1/2" - 13 | 2-1/2" | x | |
| 1/2" - 13 | 3" | x | |
| 1/2" - 13 | 4" | x | |
| 1/2" - 13 | 5" | x | |
| 1/2" - 13 | 6" | x | |
| 5/8" - 11 | 1" | x | |
| 5/8" - 11 | 1-1/2" | x | |
| 5/8" - 11 | 2-1/2" | x | |
| 5/8" - 11 | 3" | x | |
| 5/8" - 11 | 4" | x | |
| 3/4" - 10 | 1-1/2" | x | |
| 3/4" - 10 | 2" | x | |
| 3/4" - 10 | 2-1/2" | x | |
| 3/4" - 10 | 3" | x | |
| 3/4" - 10 | 3-1/2" | x | |
| 3/4" - 10 | 4" | x | |
| 3/4" - 10 | 5" | x | |
SEE ALL AVAILABLE SIZES |
|||
