110 Copper Flat Bar
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description

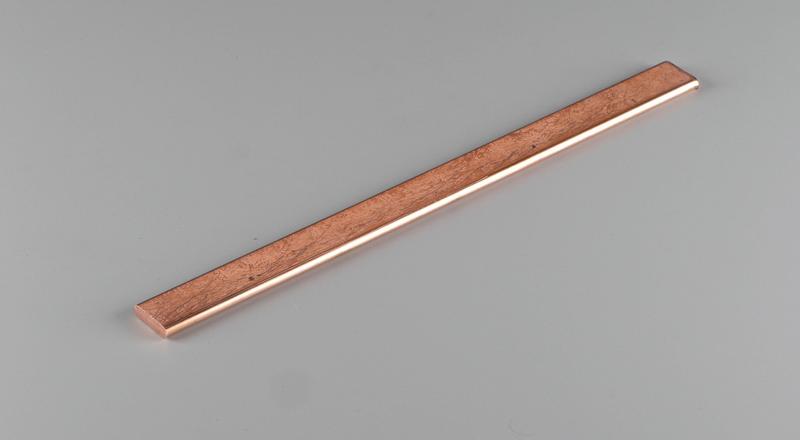

110 Copper flat bar is an excellent candidate for some processing techniques as well as both indoor and outdoor applications. When copper is exposed to natural elements, it will patina and develop a greenish or bluish hue over time. Commonly referred to as Electrolytic Tough Pitch Copper (ETP), copper alloy 110 has great corrosion resistance and conducts electricity. The material is non-magnetic with a semi-smooth surface and defined edges. Copper flat bars are commonly used in corrosive environments, electrical work, mechanical or architectural applications, and ornamental projects. ASTM B187 110 copper is a standard specification for copper wiring, busbar, electrical power systems, and installations.
Features
Alloy
110
ASTM
ASTM B187
Characteristics
110
Good forming, drawing, spinning & electrical conductivity. Can be suitable for welding & soldering. Great corrosion resistance.
Good forming, drawing, spinning & electrical conductivity. Can be suitable for welding & soldering. Great corrosion resistance.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| Cu | 99.9 |
| O | 0.04 |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.323 lb/in3 | 8.94 g/cc |
| Ultimate Tensile Strength | 46,400psi | 320 MPa |
| Yield Tensile Strength | 40,600psi | 280 MPa |
| Melting Point | 1,950 - 1,980°F | 1,070 - 1,080°C |
| Temper | H00,H02 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
||
| Size | Length | Weight (lbs/ft) |
| 1/8" x 1/2" | 144.00" | 0.242 |
| 1/8" x 3/4" | 144.00" | 0.345 |
| 1/8" x 1" | 144.00" | 0.485 |
| 3/16" x 3/4" | 144.00" | 0.545 |
| 1/4" x 3/4" | 144.00" | 0.727 |
| 1/4" x 1" | 144.00" | 0.969 |
| 1/4" x 1-1/2" | 144.00" | 1.454 |
| 1/4" x 2" | 144.00" | 1.938 |
| 3/8" x 1" | 144.00" | 1.454 |
| 3/8" x 2" | 144.00" | 2.907 |
| 3/8" x 3" | 144.00" | 4.361 |
| 1/2" x 1" | 144.00" | 1.938 |
| 1/2" x 1-1/2" | 144.00" | 2.908 |
| 1/2" x 2" | 144.00" | 3.876 |
| 1/2" x 3" | 144.00" | 5.814 |
| 3/4" x 2" | 144.00" | 5.814 |
