6063-T52 Aluminum Architectural Tee Bar

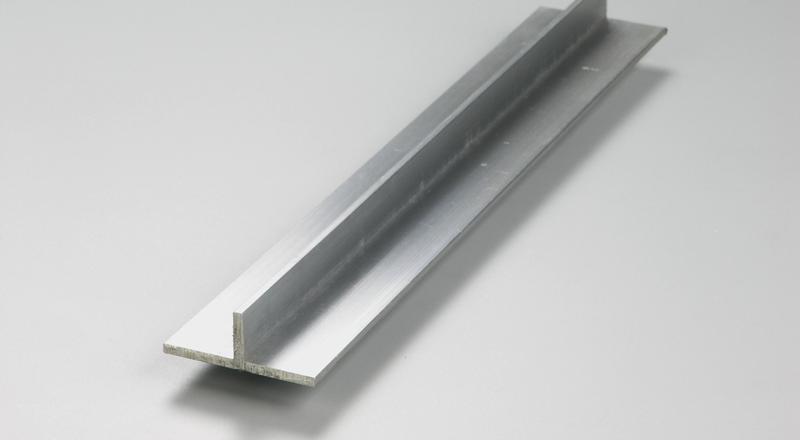

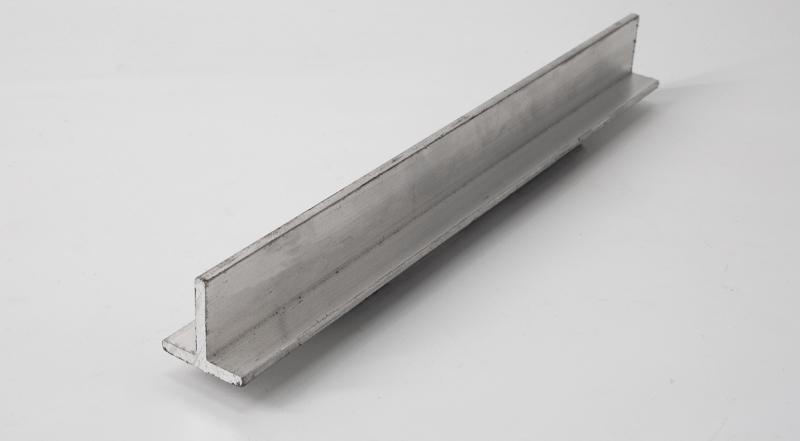

Aluminum tee bar structural item image.
Click to Enlarge
This is description text
Item Selection
1) Select Size:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
Disclaimer:

Please note: Due to material handling and the nature of the metal industry, items may have light surface scratching.

This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

6063 Aluminum architectural tee bar is an excellent candidate for most processing technique and interior and exterior applications. 6063 structural materials have a defined 90° edge inside and out. Common applications include bracing, architectural trim, and structural support. It’s lightweight, corrosion resistant, has a smooth finish, and is more formable than 6061 aluminum.

Features

ASTM

ASTM B221-08

Alloy

6063-T52

Characteristics

6063
Medium strength. Weldable, machinable & formable with large radius.

Specifications

CHEMICAL COMPOSITION
Element Percentage
Al 98.9
Cr 0.1 max
Cu 0.1 max
Mg 0.45 - 0.9
Fe  0.35 max
Mn 0.1 max
Si 0.2 - 0.6
Zn 0.1 max
Ti 0.1 max



MECHANICAL INFORMATION
  Imperial Metric
Density 0.1 lb/in3 2.7 g/cc
Ultimate Tensile Strength 27,000psi 186 MPa
Yield Tensile Strength 21,000psi 145 MPa
Fatigue Strength 10,000psi 68.9 MPa
Shear Strength 17,000psi 117 MPa
Melting Point 1,140 - 1,210°F 616 - 654°C



Temper T52
Hardness Knoop 83
Hardness Brinell 60
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES
Size Weight Per  Foot (Lbs) Depth Width (Flange) Thickness (Web)
1" x 1" x 1/8" 0.274 1" 1" .125"
